CAD BASED INSPECTION

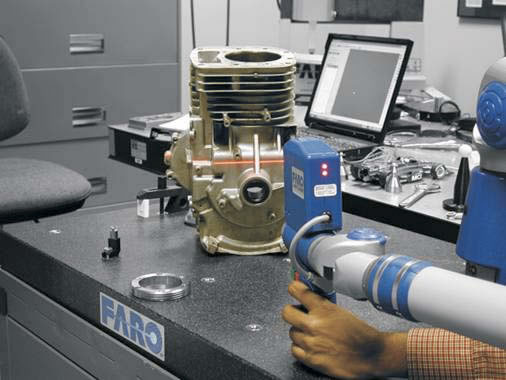

Measuring directly against CAD data with a
measurement arm lets the operator see real time deviations
from nominal. This means parts can be produced with an
inspection report certifying the part has been manufactured
within acceptable tolerances.
A single touch of its Probe on any part of a component or die cavity will register whether or not it is in tolerance of the original CAD design.it is also portable enough to be used to
check tooling parts whilst they are on machines without taking them out of their fixtures and to check cutter profiles on CNC machines etc.
